Solar Technology – Mono High Density Solar Panel Kits 100-200W

Build your perfect roof and deck top kit starting with a premium solar panel With power ratings up to 200w, Solar Technology’s rigid MHD solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel.

A charge controller should be used with MHD solar panels to protect the battery from being overcharged and to prevent reverse current drain. Put yourself in control The 10Ah and 20Ah PWM charge controllers are capable of charging 12V and 24V single or dual batteries.

The MPPT charge controllers increase solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from a solar panel system to actively match any battery’s requirements.

This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss. The 15Ah MPPT Pro can charge dual batteries, the 20Ah and 30Ah Pro Plus models charge a single battery.

All PV Logic MPPT charge controllers come with free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the charge controller and shows performance figures for the leisure battery.

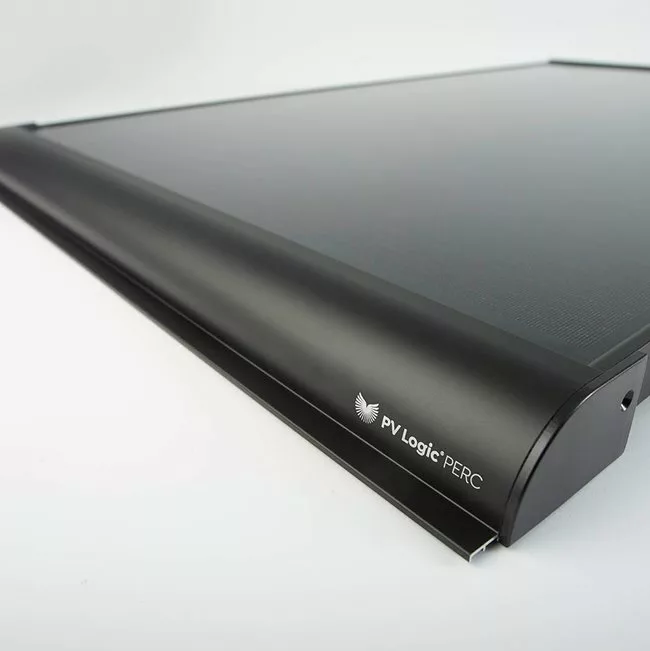

Opt for the brackets of your choice The premium aero brackets are the most popular option to install MHD Rigid panels. There is also the option of fitting the panel with ABS corner brackets. The roof and deck top kit comes with a 10Ah PWM charge controller plus the opportunity to upgrade the to a model in the MPPT Pro range.

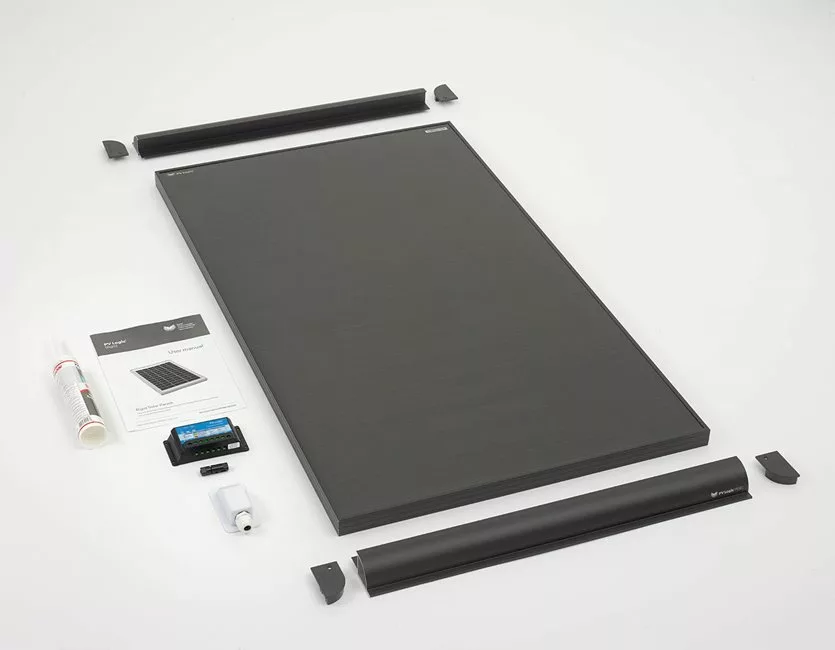

High efficiency crystalline cell for “all weather” charging Water resistant, robust construction for outdoor use. In built diode protects against battery discharge Tough and robust 10 year module warranty Roof and Deck Top Contents 1 x 100w/125w/150w/200w MHD solar panel with cable/s 1 x 10Ah/20Ah charge controller (or upgrade to 15Ah, 20Ah or 30Ah MPPT charge controller) 1 x premium aero bracket fitting kit (or opt for ABS corner brackets) 1 x cable feed gland 1 x tube bonding agent 1 x fitting instructions Power Size Weight Watts per day AMP hours per day VMP (VDC) IMP (A) VOC (V) ISC (A) 100w 1150 x 460 x 35mm 6.9kg 600 31.92 10Ah 18.8 5.32 5.64 125w 988 x 670 x 35mm 7.5kg 750 23.52 10Ah 31.9 3.92 4.15 150w 1150 x 670 x 35mm 8.5kg 900 47.88 10Ah 18.8 7.98 8.46 200w 1520 x 670 x 35mm 11.8kg 1200 48 20Ah 25 8 8.48
